Hurricane Panels

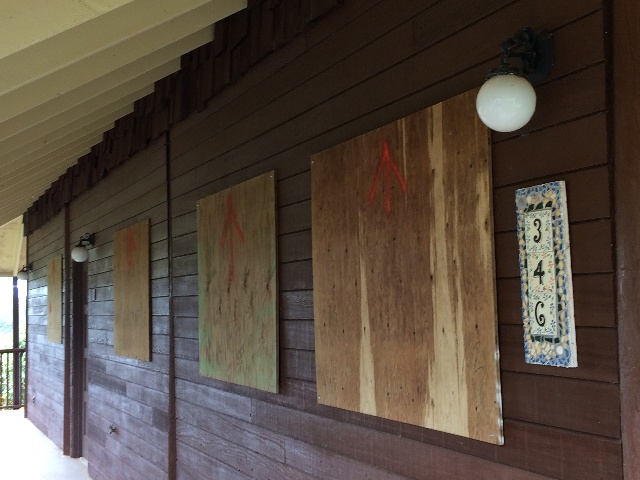

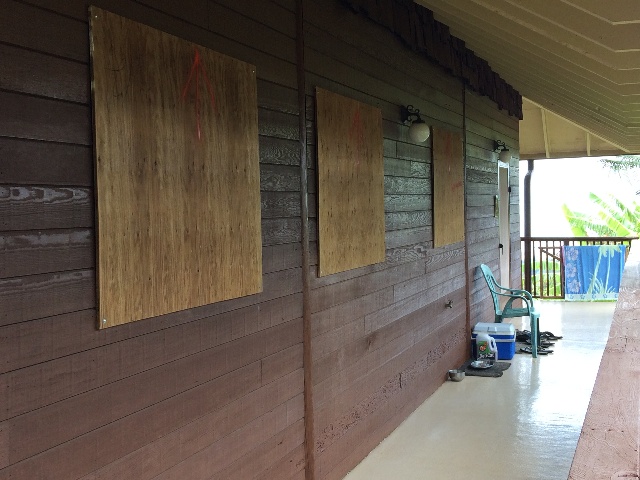

hurricane panels for the windows of our house

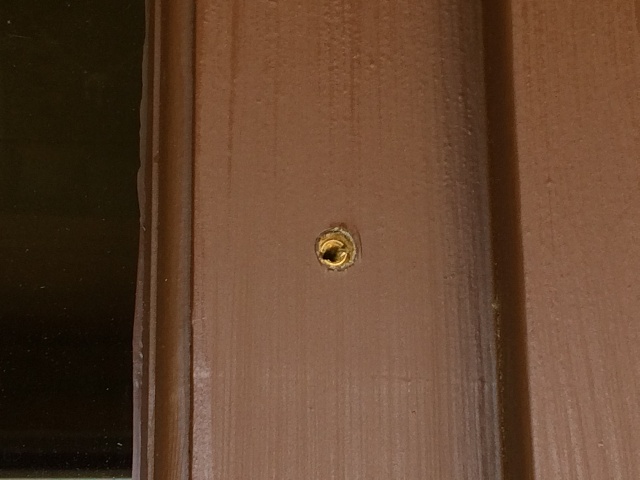

Using 10-24 screws and threaded brass inserts to mount the hurricane panels

1/4" hole for the inserts

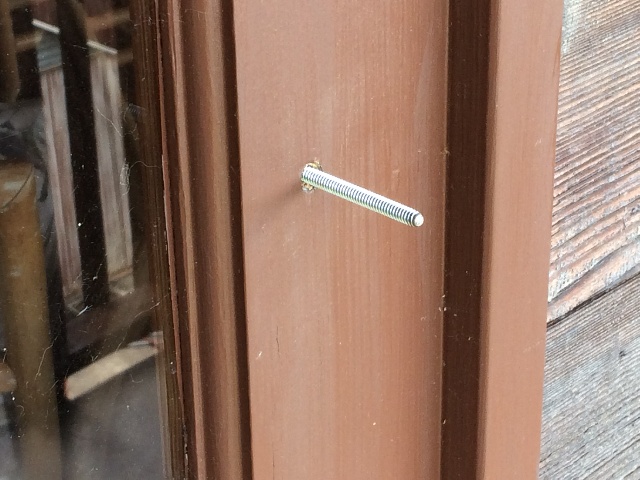

A length of 10-24 headless screw is a guide pin for each panel

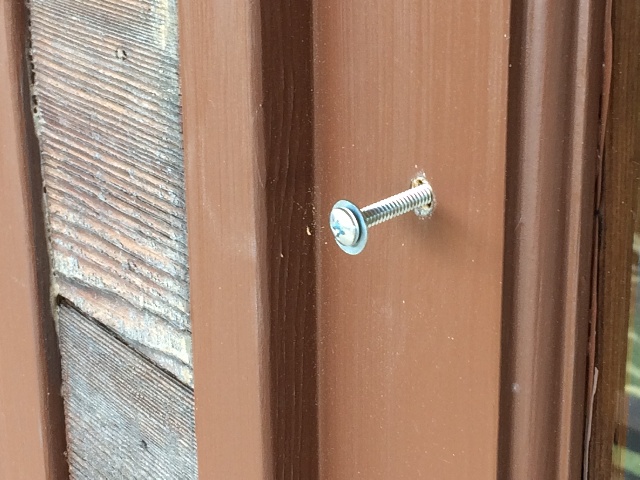

10-24 screws with a washer hold the panels in place

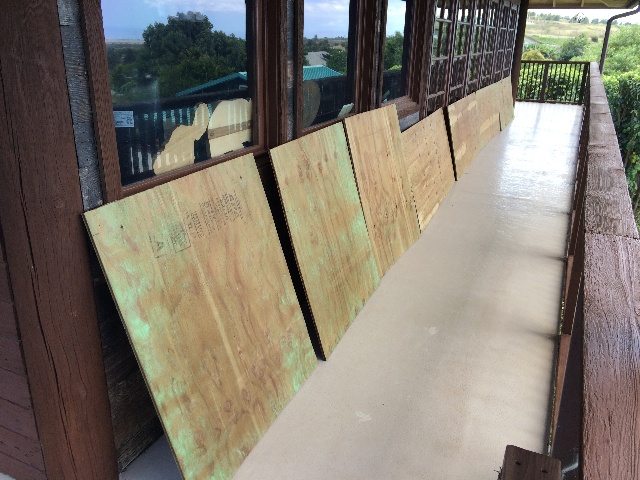

3 window sizes, three panel sizes, the panels for a given window size
are all cut and drilled identical and are interchangeable

It takes about 5 minutes per panel to put them up

Dorothy says it's too dark inside, that we need to cut "peep holes" to lete a little light in...
